Aesthetix Callisto Eclipse Linestage

Aesthetix Callisto Eclipse Linestage

This product is currently unavailable for online purchase.

$17,000.00

Contact a sales representative

  • Description
  • Additional information
  • Reviews (0)

Description

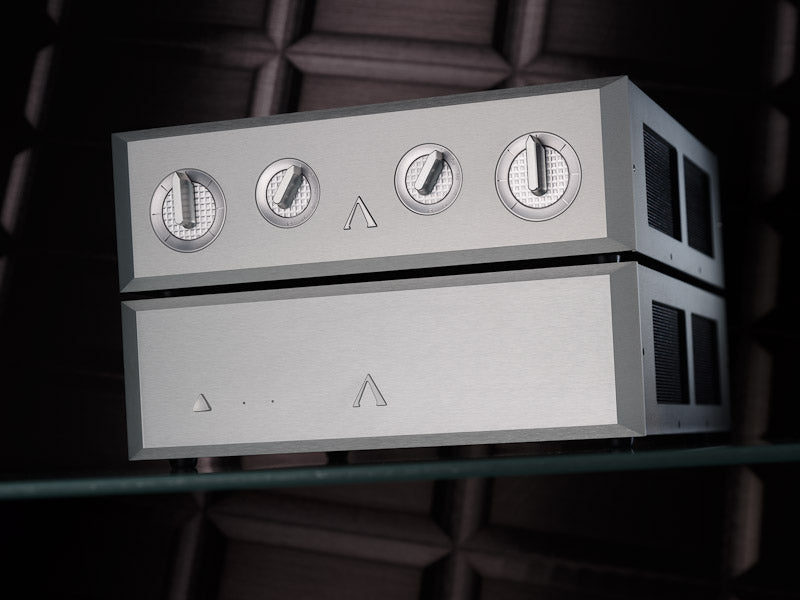

Aesthetix Callisto Eclipse Linestage

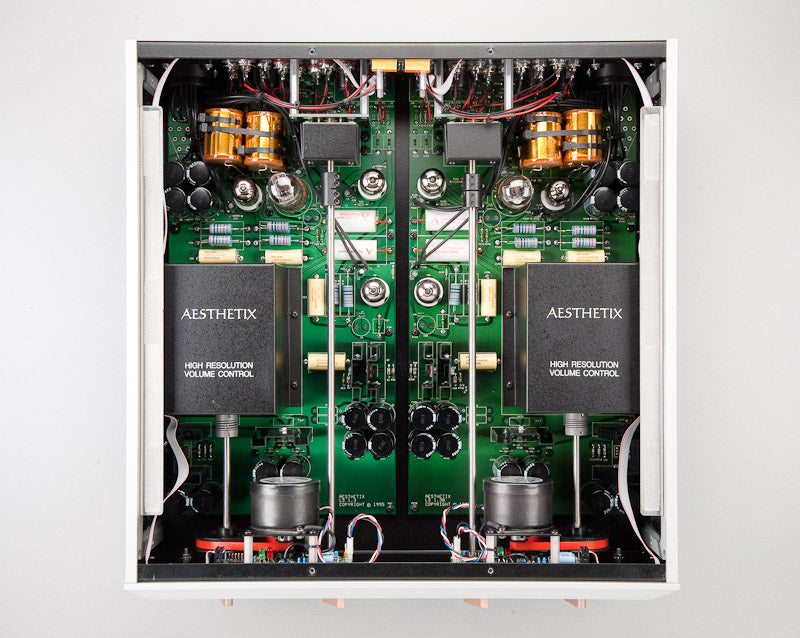

Callisto is an all-tube linestage suitable for the most demanding audio systems and listeners. Fully balanced circuitry from input to output, including internal balancing of single-ended inputs, results in common mode signal rejection and cleaner sound. The innovative discrete switched resistor volume control maximizes resolution at any listening level. A separate power supply chassis removes any possibility of transformer noise corrupting the delicate audio circuitry. Peter Moncrief Stealth Capacitors are used in the Eclipse Edition for unparalleled sound quality.

• Fully balanced differential circuitry with ability to internally balance a single-ended input signal.
• Innovative and unique mechanically switched discrete resistor volume control with 46 positions using Roederstein resistors.
• Separate volume controls and input selectors for each channel.
• All tube amplification and output (8 tubes total).
• Separate vacuum tube regulated power supply utilizing 8 tubes.
• Two sets of XLR and two sets of RCA outputs per channel.
• Six inputs: First two single-ended (rca) or balanced (XLR); remaining four single-ended (rca) only.

The Eclipse transformation takes already industry standard setting products to a whole new level of performance. Io, Callisto and their respective power supply receive enhanced internal parts, improved chassis construction, and stunning customizable casework.

StealthCap Capacitors

Musical signals passing through a capacitor are blurred or clouded as signal reflections bouncing off the capacitor plate corrupt the original musical signal. StealthCap capacitors created by Peter Moncrief aim to cure this problem by dramatically reducing reflections along the capacitor plate. The “Stealth Technology” is made possible by a combination of laborious precision handiwork and costly exotic materials including new conductors, dielectrics, and composite resins. The resulting signal has a quieter background, rich and detailed spatial imaging, time focused musical coherence, and a broader more impactful dynamic range. The Io Eclipse uses eight .22uF / 600v Stealth coupling capacitors made of exotic copper foil. These are used between the second and third gain stages, and the third gain stage and output stage. The Io and Callisto Eclipse output stages also use eight 4uF / 400v Stealth capacitors in a unique balanced configuration.

Chassis Construction

Eclipse Edition chassis feature an extremely rigid and acoustically damped design, delivering new levels of articulation and clarity. Three separate side and top panels are machined from aluminum billet. Each panel is constrain layer damped with advanced 3M adhesives, requiring a labor intensive application of heat and pressure for proper mating. Advanced interlock material and machine screws are used to attach the panels for easy tube access. Harmonic Resolution Systems Nimbus Couplers, specially made for Aesthetix, are used to intimately couple the chassis with the equipment rack, greatly reducing mechanical noise.

Casework Design and Customization

Eclipse editions feature a stunning multi-piece front panel which includes detailed machining of the front panel casing, inlay and logo. Jupiter Eclipse customers may personalize the appearance of their unit by selecting metal finishes for the faceplate, rings, knobs, dials and logo. Use our interactive online tool to design your own Io or Callisto Eclipse here.

Additional information

Weight 50 lbs
