ATC
ATC SCM40
ATC SCM40
ATC SCM40
The unique Soft Dome technology that features in the midrange driver of the SCM40 floor-standing monitor was developed by ATC in 1976. Its arrival revolutionised professional studio monitoring. Remarkably today, as then, it remains the only midrange device capable of giving ultimate performance.
- New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
- ATC 164mm bass driver.
- Massive optimised motor assembly.
- ATC Soft Dome mid-range driver.
- Flat impedance curve allowing easy load for amplifiers.

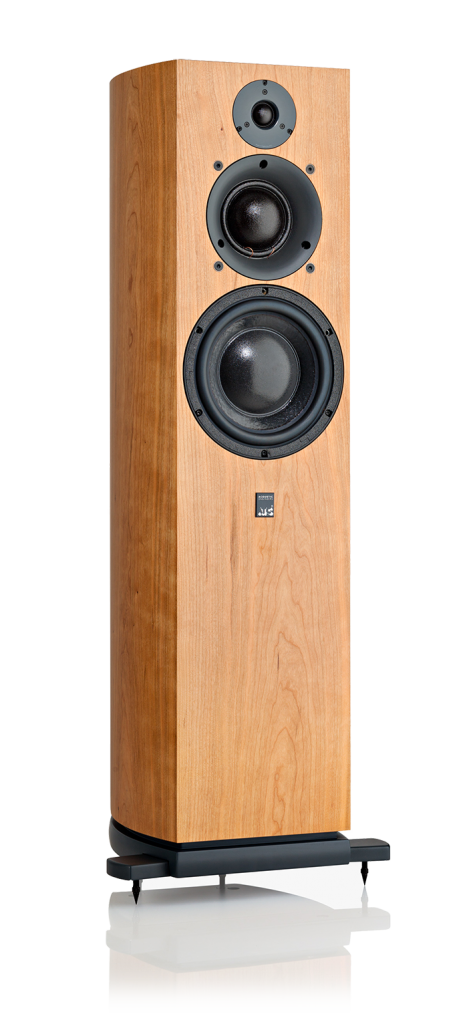

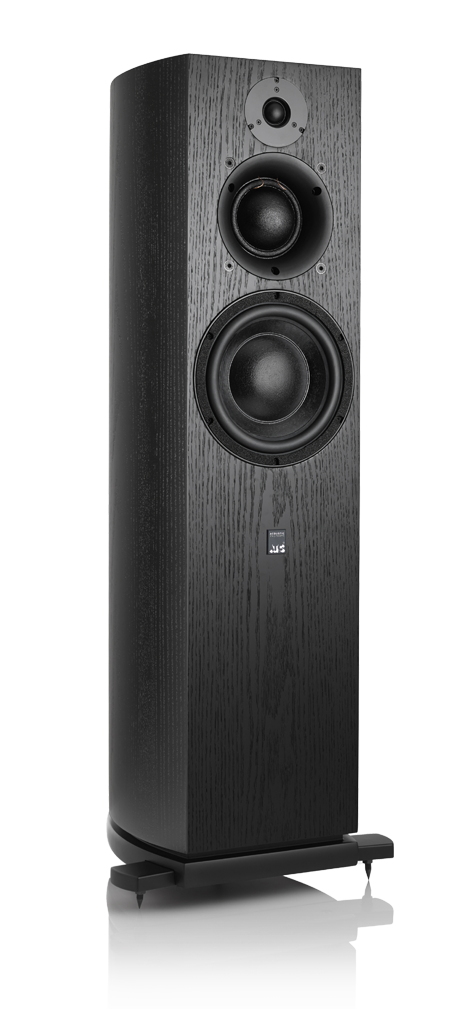

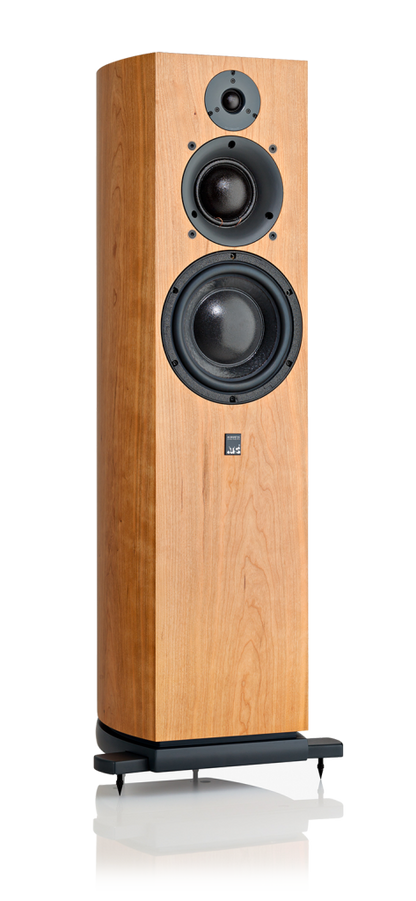

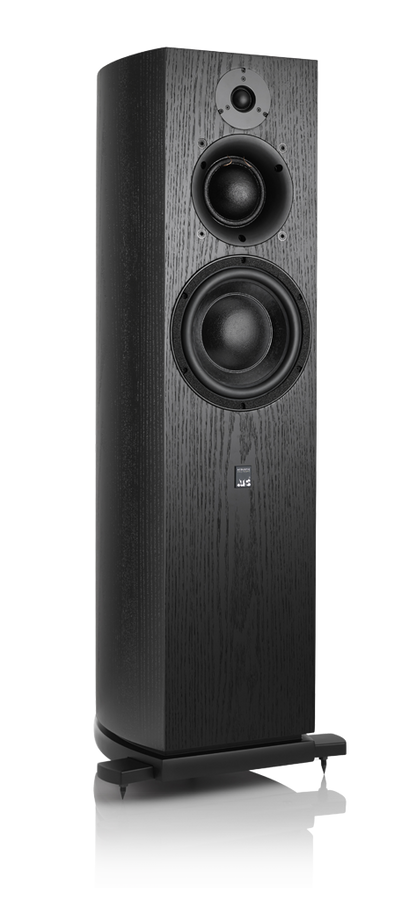

- Veneered Finish Options – Cherry, Black Ash.

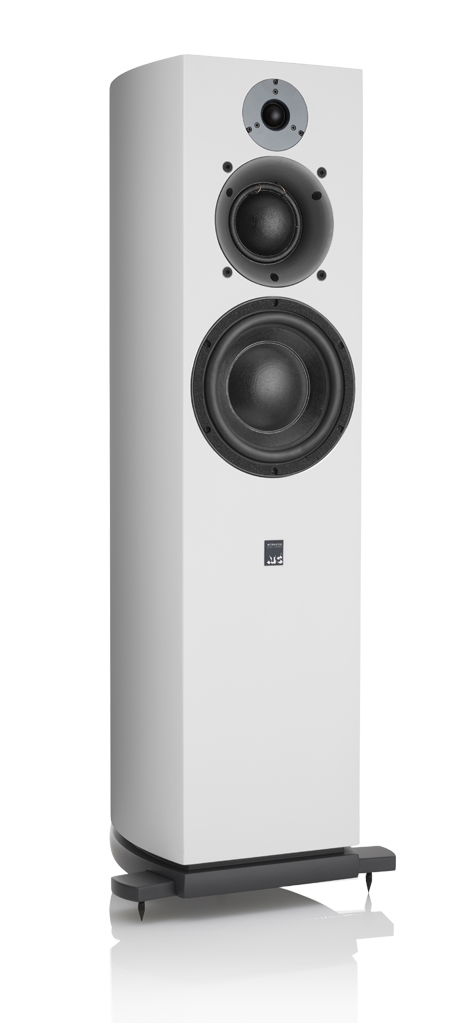

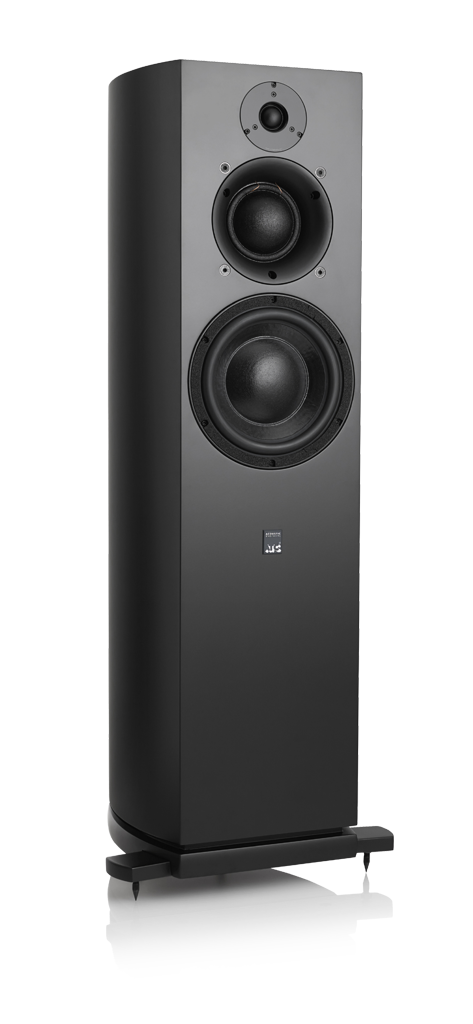

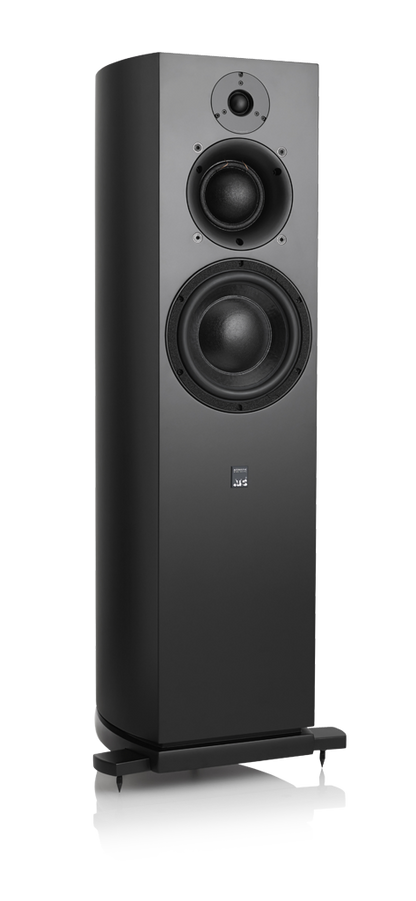

- Painted Finish Options – Satin Black, Satin White.
- 6 year warranty.
Drivers: HF ATC 25mm Neodymium, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 112dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Binding Posts/4mm Plugs, tri-wire
Dimensions (HxWxD): 980 x 370 x 305mm / 38.58 x 14.56 x 12.01″ (inc. foot plinth, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 31kg
Spikes: 4 per cabinet, M8 x 1.25mm
