Aurender W20SE

Aurender W20SE

W20SE is the music server of choice for the finest audio systems in the world. Designed to be used with high-performance digital-to-analog converters, the Aurender W20SE is one of the few music servers to provide support for external word clocks used in professional audio and recording studios. Additionally, a dual-wire mode AES/EBU used by some reference grade digital-to-analog converters to allow separate transmission of left and right channels for better fidelity. However, even without using an external word clock input or dual AES/EBU outputs, W20SE’s battery power supply provides a dramatically lower noise floor for a totally silent background. With a 4TB internal SSD and a 1TB SSD caching drive for playback, the W20SE is the ideal solution for even the most extensive high-resolution music collections.

In digital audio, jitter and noise in the audio signal can adversely affect the performance of digital-to-analog converters. The Aurender W20 is was the world’s first music server to completely eliminate noise from AC power supplies and AC mains through the use of LiFePO4 (LFP) batteries to power the audio circuitry.W20SE uses the same scheme to minimize the noise in audio output. An FPGA-based All Digital Phase Locked Loop system with Oven-Controlled Crystal Oscillator (OCXO) clock is used to maintain long term jitter to below negligible levels and specially designed circuitry provides clean, noise-free power to the dedicated USB 2.0 digital audio output. A solid-state caching drive for playback isolated by extensive shielding using thick aluminum partitions also minimize and eliminate the many types of jitter and noise usually associated with the use of disk drives for playback.

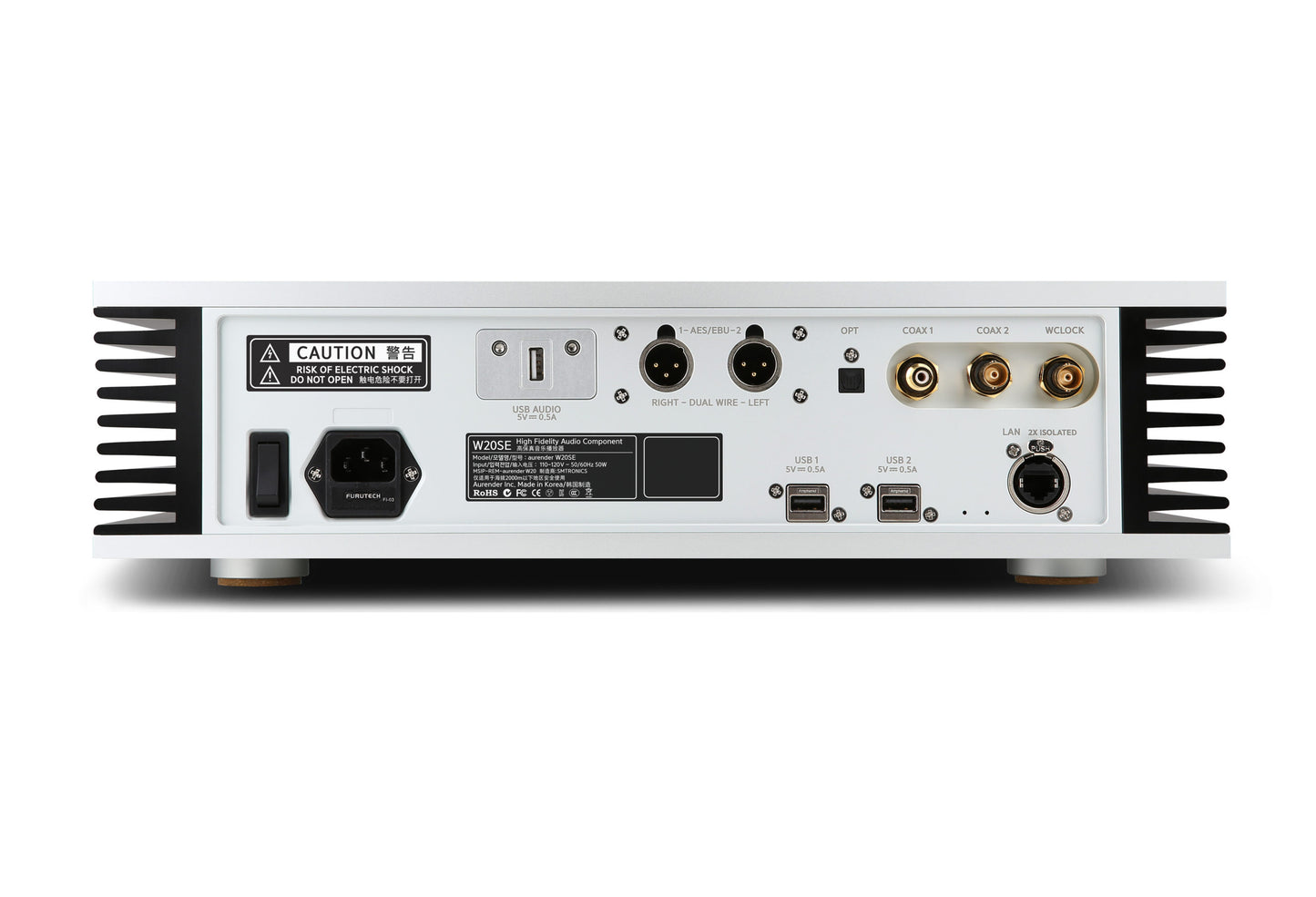

Designed to be matched with the highest performing digital-to-analog converters, the Aurender W20SE is equipped with various SPDIF outputs (Dual AES/EBU, Coaxial BNC and Optical) and one dedicated USB Audio Class 2.0 output. For network connectivity and file transfers, the W20SE comes with one a Gigabit Ethernet port and two USB 2.0 data ports.
