Bryston
Bryston BDA-3.14
Bryston BDA-3.14
Bryston BDA-3.14
Since Bryston began developing products for digital playback enthusiasts, one thing has been constant - separate components for streaming and D to A. That changes with their new BDA-3.14. They merged their BDP and BDA platforms into this one new product that starts with their BDA-3 and adds a high quality streamer internally connected with I²S - the most accurate digital interconnection method currently available. Additionally, 10 other inputs are available to make the Bryston BDA-3.14 your high resolution digital hub.
The Bryston BDA-3.14 is a state of the art stereo digital to analog converter plus high resolution streamer that accepts digital input from up to 10 source components and connects to an analog line-level preamplifier. Both DSD and PCM audio data are supported. Advanced engineering and application of technological advancements mean that even previously highly regarded digital source components may have dramatically improved sound quality when connected to the BDA-3.14.
Available in either 17 inch or 19 inch wide C-Series dress panel in silver-toned (clear anodized) or black anodized aluminum.
- Built in streamer features up to 192kHz / 24 bit playback.
- Tidal, Qobuz, Roon, Internet Radio and more
- Connect USB or NAS drive for local library playback.
- Full control via web enabled device

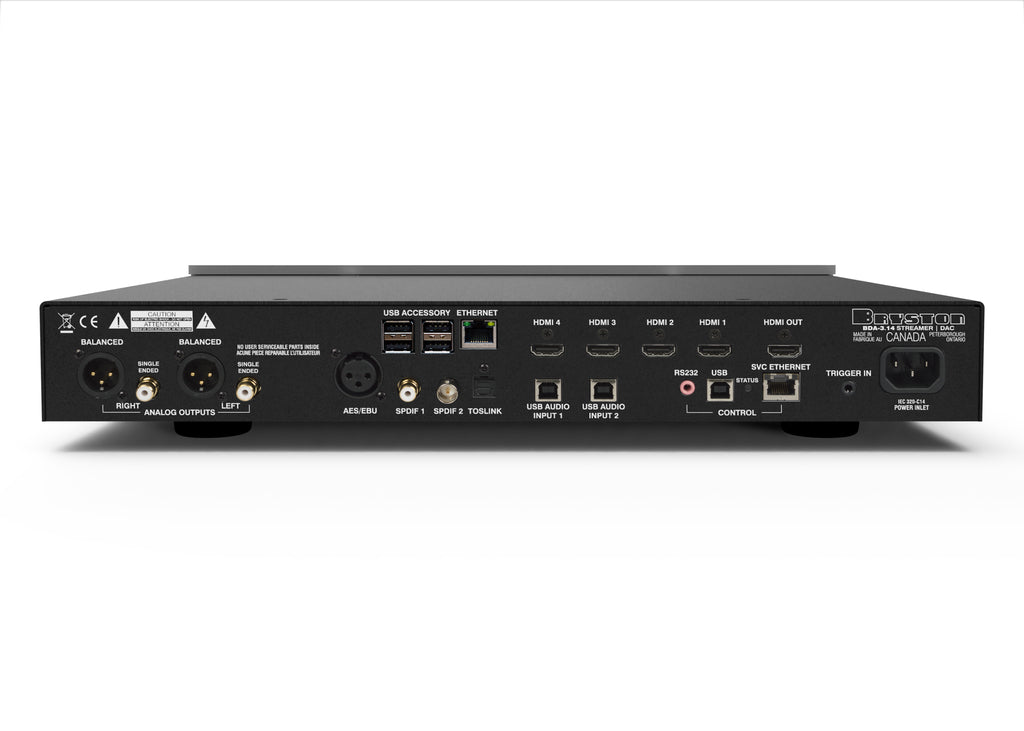

- 10 different inputs including 4 HDMI, 2 USB, AES/EBU, S/PDIF RCA, S/PDIF BNC, and Toslink
- PCM support up to 384 kHz / 32 bit
- DSD support up to DSD-256 (x4)
- User selectable upsampling for some inputs
- Separate power supplies for analog and digital circuitry
- Fully discrete Class-A balanced analog outputs
- Control via IR, RS232, IP, or 12V trigger
- Aluminum chassis and metalwork. Machined and anodized aluminum dress panel.
| SPECIFICATIONS | |
|---|---|
| Dimensions | Inches: 17 or 19 W x 3.4 H x 12 D |
| Weight | 8.5 lbs | 4 kg |
| Frequency Response: | 20Hz - 20kHz: ±0.1dB |
| THD+N (20Hz-20kHz): | <0.002% |
| Voltage Output: | XLR: 4V | RCA: 2V |
| Noise: | RCA: -134dB |
| XLR: -140dB |
