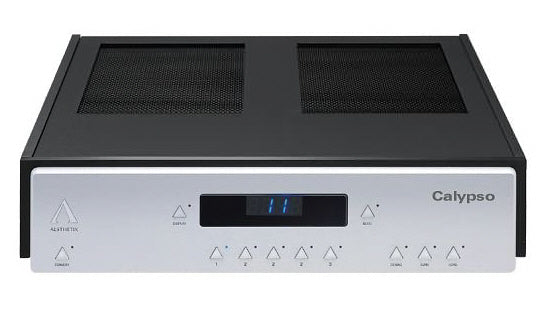

Aesthetix Calypso Eclipse
Aesthetix Calypso Eclipse
Aesthetix Calypso Eclipse
Calypso Eclipse is an all-tube linestage suitable for audio and home cinema systems. Fully balanced circuitry from input to output, including internal balancing of single-ended inputs, results in common mode signal rejection and cleaner sound. The innovative discrete switched resister volume control maximizes resolution at any listening level. Every input is both single-ended and balanced for greater versatility. Home theatre bypass mode, absolute phase setting and full function remote are added conveniences. The all-aluminum chassis is rigid, acoustically inert and simply beautiful.
- Fully balanced differential circuitry with ability to internally balance a single ended input signal.
- Zero feedback.
- Discrete switched resistor volume control with 88 1dB steps.
- All tube amplification and output (4 tubes total).

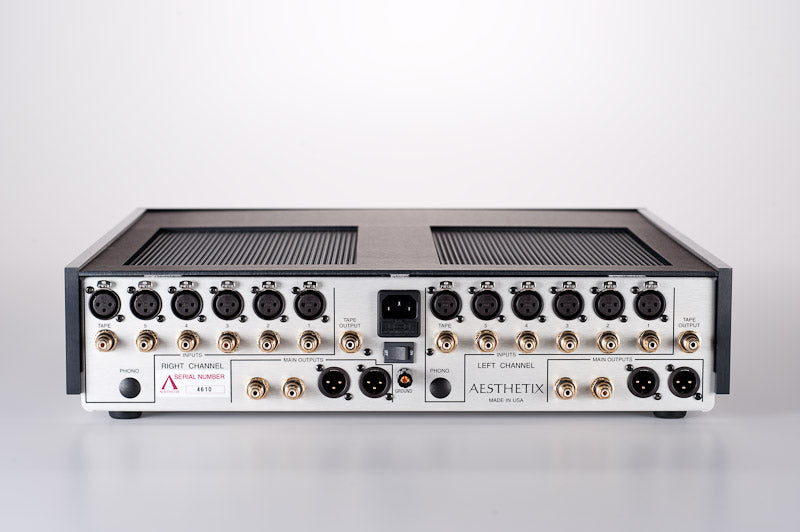

- Two sets of XLR and two sets of RCA outputs per channel.
- Bypass mode for home theatre processor throughput.
- Absolute phase, selectable via front panel or remote control.
- Full function remote included.
- Available in black or silver faceplate.
Calypso is available as the Calypso Eclipse:
First phase: Internal changes to the Calypso start with .22uF / 600v Stealth coupling capacitors used between the gain stage and output stage. Four total of these exotic capacitors are used.
There are four 2uF / 400v coupling capacitors used in each channel of the output stage of the Calypso. In the Eclipse version, these are replaced with Stealth copper foil 4uF/400v, improving low frequency response.
Second phase: High frequency tuning capacitors are installed and hand-adjusted to tailor the frequency response to a tight .1dB standard (as also found on our Signature version).
Third phase: The high voltage transformer, heater transformer and high voltage choke are all re-installed on isolation mounts. Harmonic Resolutions Systems' Nimbus Couplers specially made for Aesthetix replace the four rubber feet of standard units (as also found on our Signature version). The new power supply is installed with enhanced ventilation. Additional damping material is added to key chassis points.
Fourth phase: A single point ground system is used to ground the transformer cases as they are no longer electrically grounded to the chassis via physical contact due to their isolation mounts. All Eclipse Rhea, Calypso and Janus units receive a new power supply, which has been refined by improved trace routing to further reduce extraneous noise.
