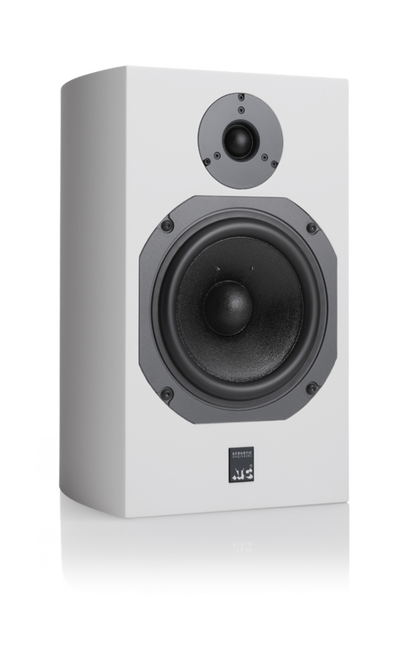

ATC SCM11 Speakers

Constrained Layer Damping (CLD) is a new drive unit diaphragm technology from ATC that has been integrated into the SCM11 monitor and represents a step-change in drive unit performance and the reproduction of music. Performance improvements include reduced harmonic distortion between 300Hz and 3KHz, extended frequency response and improved off-axis response.

  • New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
  • Precision undercut bass pole.
  • “CLD” driver technology with 45mm integral soft dome.
  • In-house, hand-wound precision flat wire coil.
  • Massive optimised motor assembly.
  • Flat impedance curve allowing easy load for amplifiers.

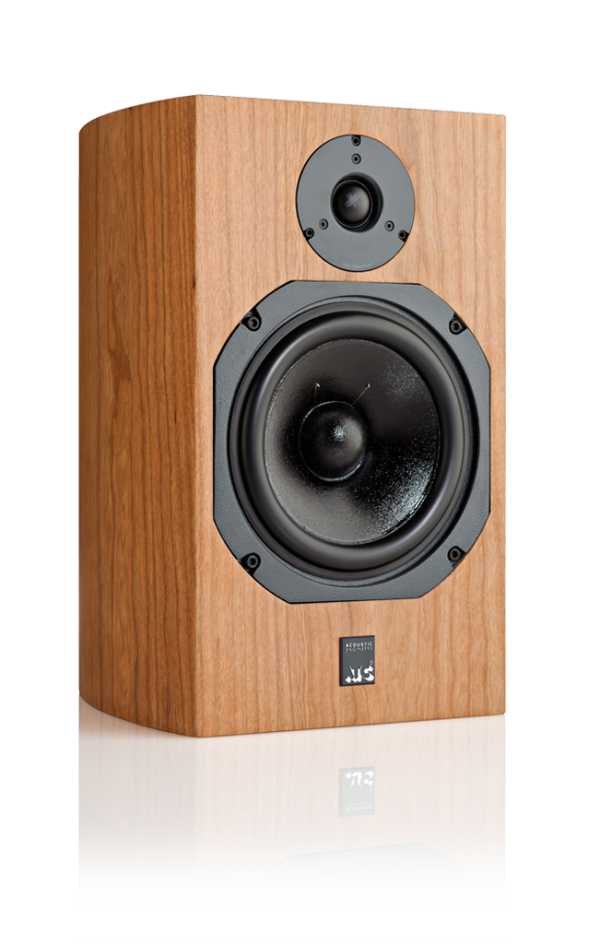

  • Veneered Finish Options – Cherry, Black Ash.

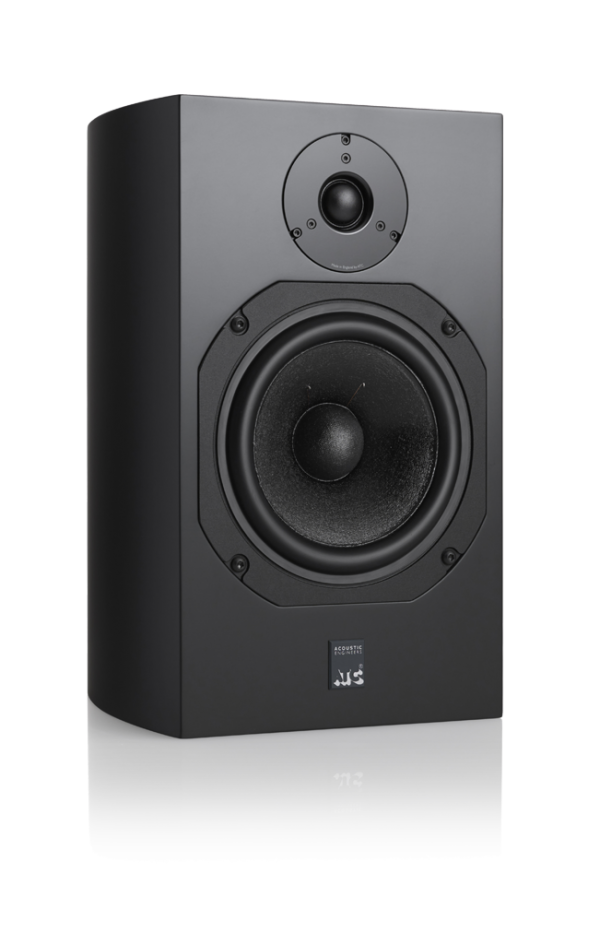

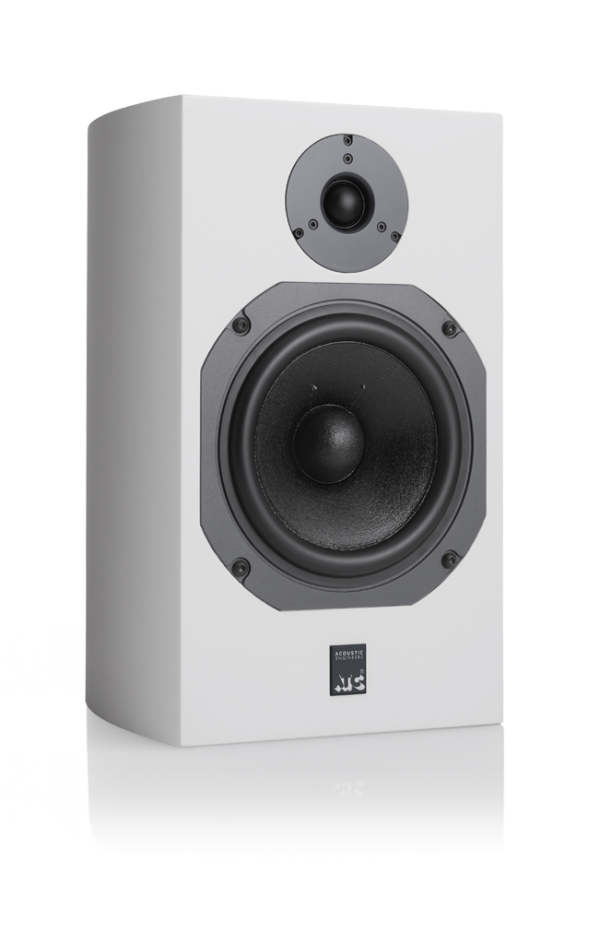

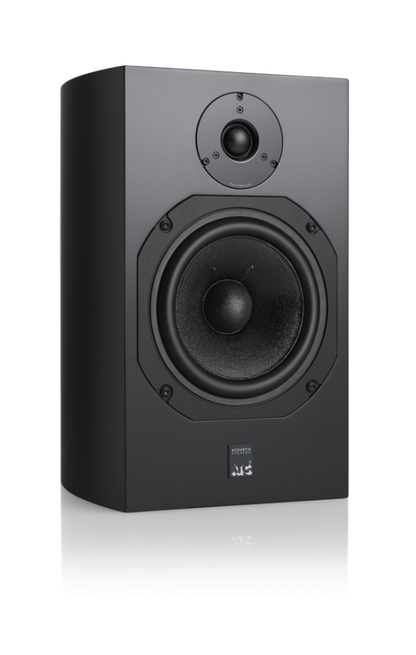

  • Painted Finish Options – Satin Black, Satin White.
  • 6 year warranty.

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm CLD
Matched Response: ±0.5dB
Frequency Response (-6dB): 56Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.2kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 381 x 232 x 236mm / 15.00 x 9.21 x 8.46″ (grill adds 28mm depth)
Weight: 10.9kg
