Clearaudio

Clearaudio Innovation Basic Wood

Clearaudio Innovation Basic Wood

Regular price Sale price $0.00
Sale Sold out
Contact us

Clearaudio Innovation Basic Wood

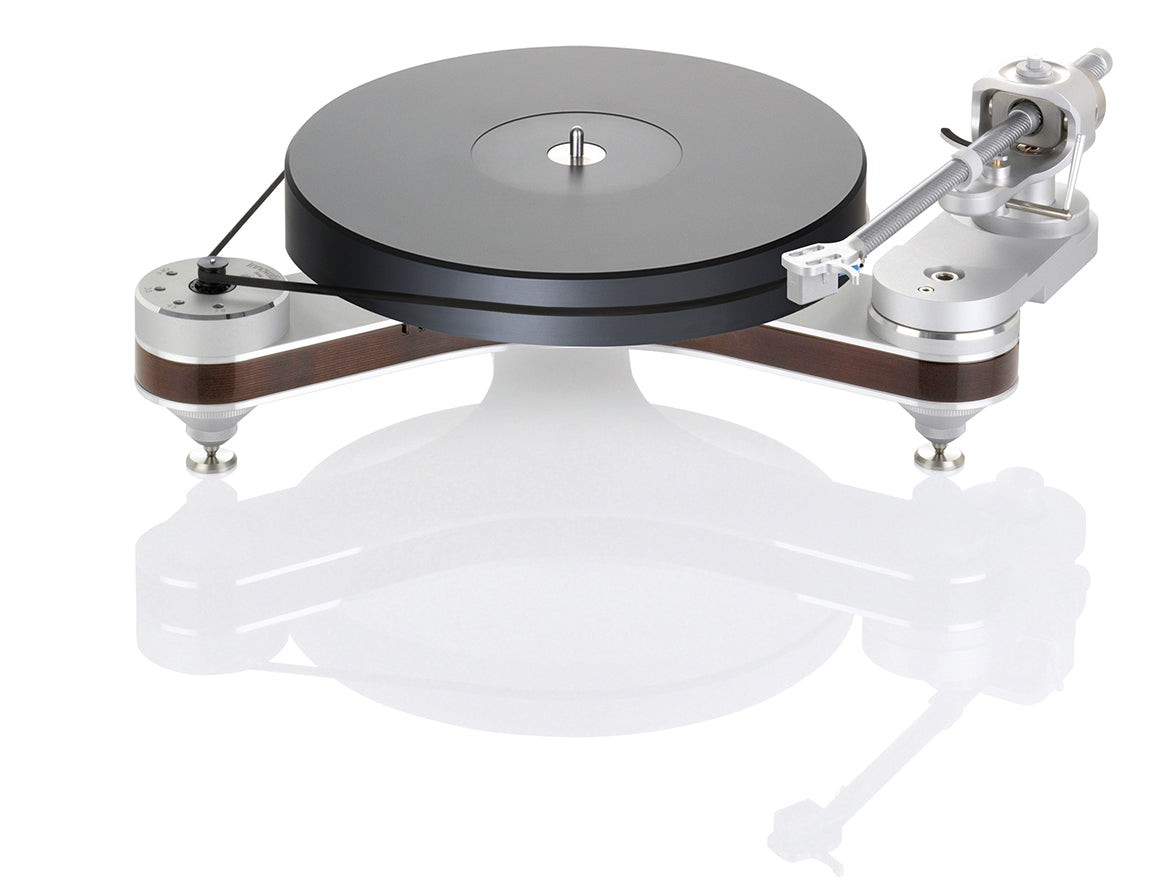

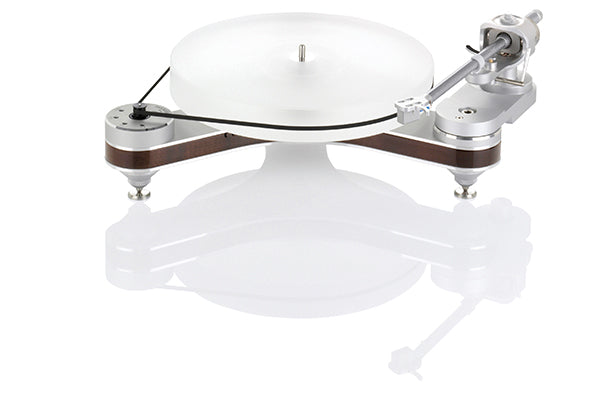

The Innovation Basic Wood is based on the technology of the Clearaudio Innovation series and is the entry level turntable for using both 12” tonearms and multiple tonearms, both radial or linear.

Its resonance-optimized chassis shape is based on the proven success of Clearaudio’s three-point or “tr-star” design — a combination of Panzerholz and aluminum skins. The Innovation Basic Wood uses Clearaudio’s patented CMB (Ceramic Magnetic Bearing) technology, where the platter magnetically levitates on an inverted bearing attached to a low-friction ceramic shaft. The high-torque 24v DC motor is equipped with electronic OSC (Optical Speed Control). The high-density, dynamically balanced 38mm polyoxymethylene (POM) platter provides excellent dimensional stability.

The Innovation Basic is available in silver or black aluminum with Natural or Piano Black Lacquer Panzerholz wood.

CONSTRUCTION DETAILS Resonance optimised chassis's shape, belt driven with self adjusting speed control
  • All turntable feet are fine adjustable
  • Playback with two tonearms possible
SPEED RANGES Comfortable speed change
33 ⅓ rpm, 45 rpm, 78 rpm
DRIVE UNIT High torque DC–motor, exclusively made for Clearaudio electronic Optical Speed Control (OSC) in real time through infrared sensor Decoupled DC motor in chassis, resonance damping device. Belt driven.
BEARING Clearaudio patented CMB – bearing technology
PLATTER 40 mm / 1.57 inch main platter, made out of synthetic material with high density and excellent dimension stability, dynamically balanced
SPEED ACCURACY (MEASURED) < ± 0.08 %
POWER CONSUMPTION Max. consumption: 9.3 Watt
Consumption in operation: 2.5 Watt
Standby mode: 2.5 Watt
Off mode: 0.0 Watt
TOTAL WEIGHT Approx. 8 kg (without tonearm and power supply)
DIMENSIONS (W/D/H in inches) Approx. 18.11 x 19.09 x 4.92 (with tonearmbase, without tonearm)
