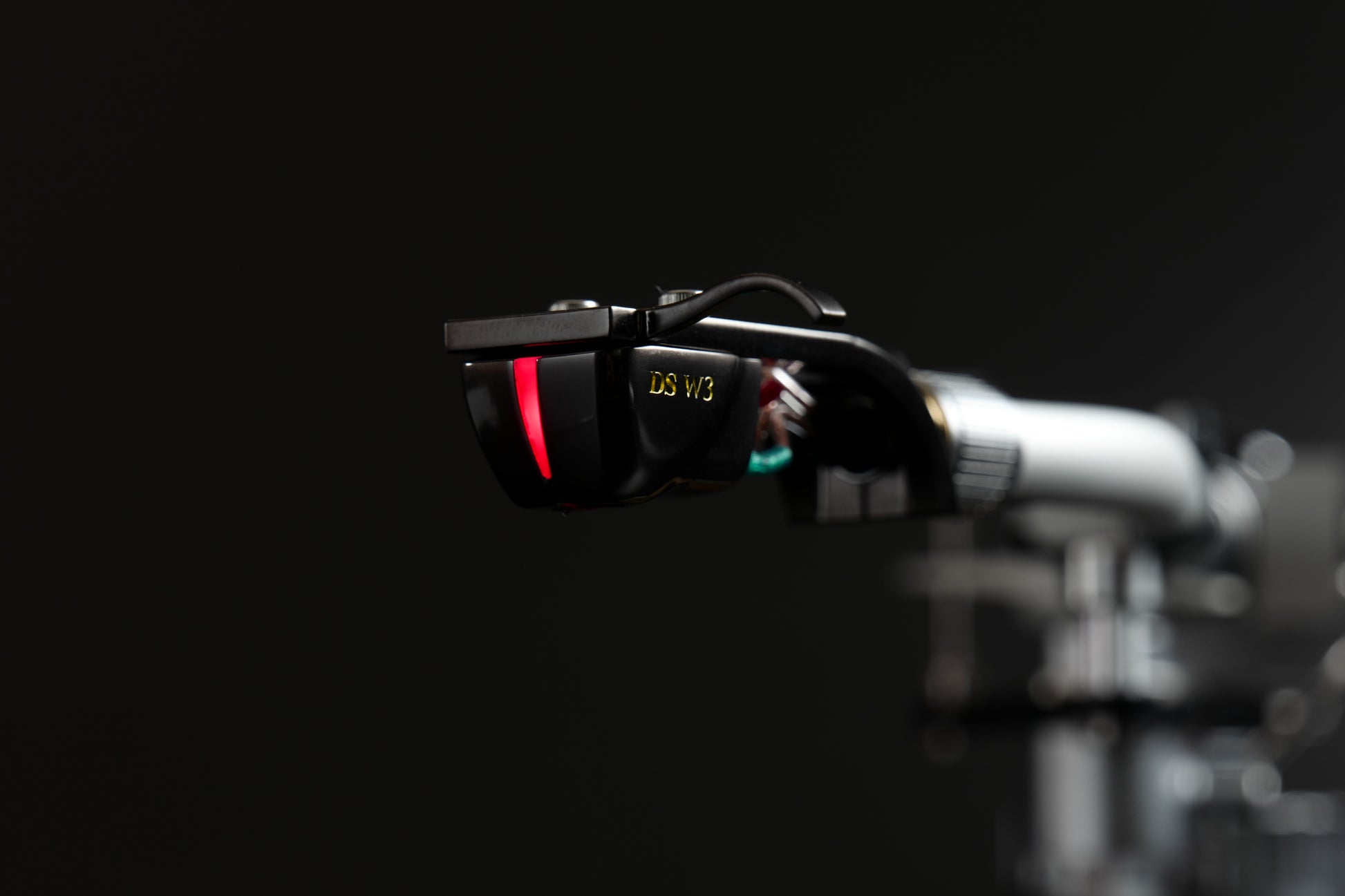

DS Audio DS-W3

The new DS-W3 optical cartridge system has been optimized, by implementing an independent LED and photo-detector arrangement for the left and right channels. As a result the cartridge output voltage has greatly increased from 40mV to 70 mV. The DS-W3 cartridge offers a greatly improved S/N ratio when compared to its stable mates, resulting in an even lower noise floor and far greater musical clarity.

The implementation of independent left and right channel LED's allows for the positioning of the optical system to be optimized as well as necessitating the use of a new shading plate that has been significantly reduced in size compared to earlier designs. In addition to this reduction in size, the material used to produce the shading plate has changed from aluminum  (as used in the second generation cartridges) to 99.9% pure beryllium.

The DS-W3 cartridge features the combination of a boron cantilever with a line contact stylus. The cartridge body is made by aluminum and the structure has been designed in such a way as to promote maximum rigidity. In addition to these features, the DS-W3 utilizes internal wiring 1.6 times thicker than used in the second generation cartridges in order to reduce impedance.
