Hegel H20
Hegel H20
Hegel H20

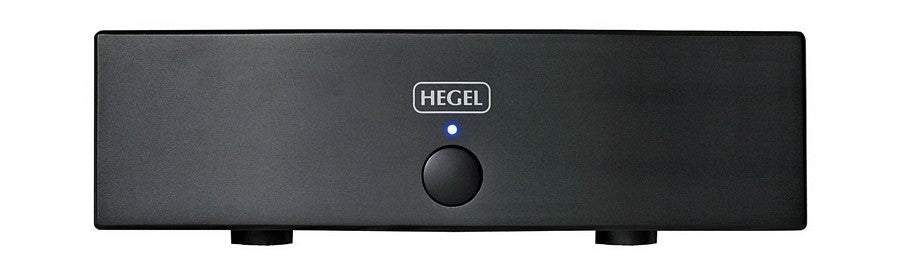

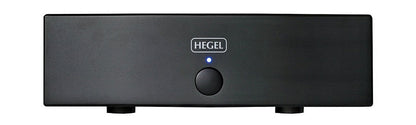

The Hegel H20 incorporates the latest version of the Hegel FET-technology. A practical benefit of the H20 FET-technology is a more rhythmic sound. It is simply better at re-creating a bass line. Another vital element is the removal of harmonic echoes in the higher frequencies, which result in a lot more detail and still a smoother and more natural sound. The core design of the H20 is based on the H30 reference amplifier, with the best possible implementation of our patented and laser trimmed SoundEngine modules. Also designed in the timeless Hegel look, it will fit in any modern or classic home. Just one single button on the front and a solid bead blasted and anodized front panel. A truly rigid design with well over 1,5 kg of aluminium in the front panel alone.
New too the H20 is bead blasted and anodized top and side covers. This adds to the exclusive look, and the overall design is more consistent. The Hegel H20 is a remarkable power amplifier with power capabilities of more than 130 Ampere. Extremely low distortion levels. Amongst the highest damping factor in the industry, and full control of the loudspeakers. All this to give you the most natural, rhytmic and dynamic sound on the market today.
Output power: More than 200W + 200W in 8 ohms, Dual mono

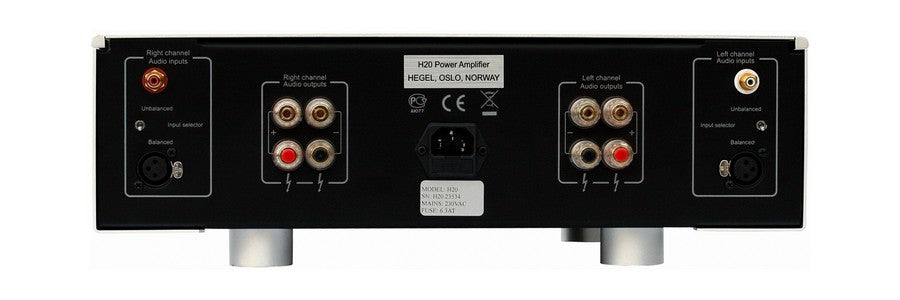

Inputs: RCA unbalanced and XLR balanced
Speaker outputs: Two pairs of heavy duty gold plated terminals
Input Impedance: Balanced 10kohm, unbalanced 50kohm
Frequency response: Less than +/- 0.2 dB deviation 20Hz-20kHz
Phase response: Less than 2 degrees deviation 20Hz- 20kHz
Signal to noise ratio: More than 100dB
Crosstalk: Less than -100dB
Distortion: Less than 0.006 % at 100W i 8 ohm
Intermodulation: Less than 0.01 % (19kHz + 20kHz)
Damping factor: More than 1000
Power supply: 1000VA dual mono, 90 000uF capacitors
Output stage: 20 pcs 15A 200W high speed, Ultra low distortion bipolar transistors
Power consumption: 60W in standby switched on
Dimensions/weight: 12cm x 43cm x 37cm (HxWxD), weight 25kg
Dimensions/weight US: 4.7" x 17" x 15" (HxBxD), weight 55 lbs
