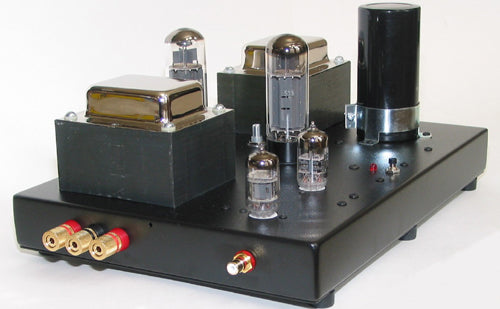

Quicksilver Mid Mono Amplifier
Quicksilver's Mid Mono amplifier is a big brother to the Mini Mite. Quicksilver’s Mid Mono amplifier is completely hand-wired and can use many different output tubes; the Mid Mono has a low loss output transformer, adjustable bias, and five-way gold-plated binding posts. Setting the bias is very simple: two screwdriver controls and pin jacks for any multimeter that reads millivolts. Power is 40 watts at 50% triode operation with the standard EL34s or KT88s, 45 watts with KT88s or KT120s.
The output transformer used in this amplifier is based on the best designs of the past but uses superior new materials to achieve a very high level of performance. The high frequency characteristics of this transformer are very stable. Many different output tubes may be used without the need for circuit changes or compensation adjustments.
This is an all tube design and uses no circuit boards or transistors.
" The Quicksilver Mid Mono is a great amp from a great company, and a super value." Sam Tellig, Stereophile,August 2003.
*PRICE SHOWN IS PER PAIR*
Specifications
| Power Output | 40 watts into 4 or 8 ohms |
| Power Bandwidth | 16 Hz to 35 KHz |
| Input Sensitivity | 1.25 volts |
| Input Impedance | 100 K ohms |
| Power Consumption | 105 watts at idle 210 watts at full power |
| Tube Complement | 1 12AX7 input 1 6922 driver 2 EL34 outputs |
| Finish | Black chassis Chrome transformer covers |
| Dimensions | 5 1/2"H, 14 1/2"D, 9 1/8"W |
| Weight | 26 lbs., 30 lbs. shipping weight |
| U.S. Warranty | 3 years parts and labor Tubes 90 days |
